China Telecom CTWing Integration

This article introduces how to quickly connect devices from the CTWing platform to the ThingsPanel platform.

Device Connectivity Service Introduction​

CTWing platform provides multiple access methods.

  • service_plugin_ctwing Device Connectivity Service:
    • This service accesses data via the HTTP push service of the CTWing platform.

Integration Process​

Prerequisites​

  1. Register a CTWing account.
  2. Register or deploy ThingsPanel platform, and deploy CTWing Device Connectivity Service.

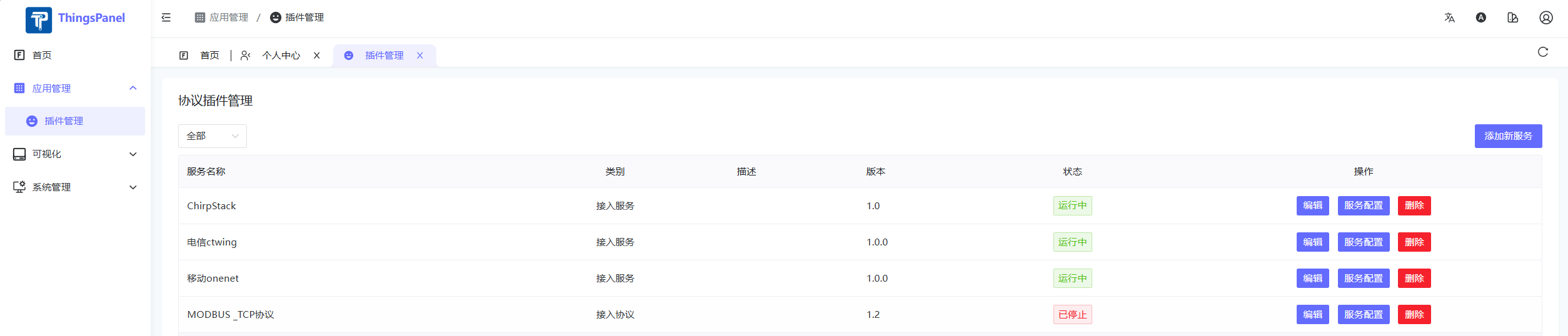

  3. CTWing Device Connectivity Service is registered to the platform. Device Connectivity Service Management

Steps​

  • CTWing Platform Configuration

    • Login to CTWing Platform.
    • Create Product and Device, get Product ID and Master-APIkey.
      • Create Product

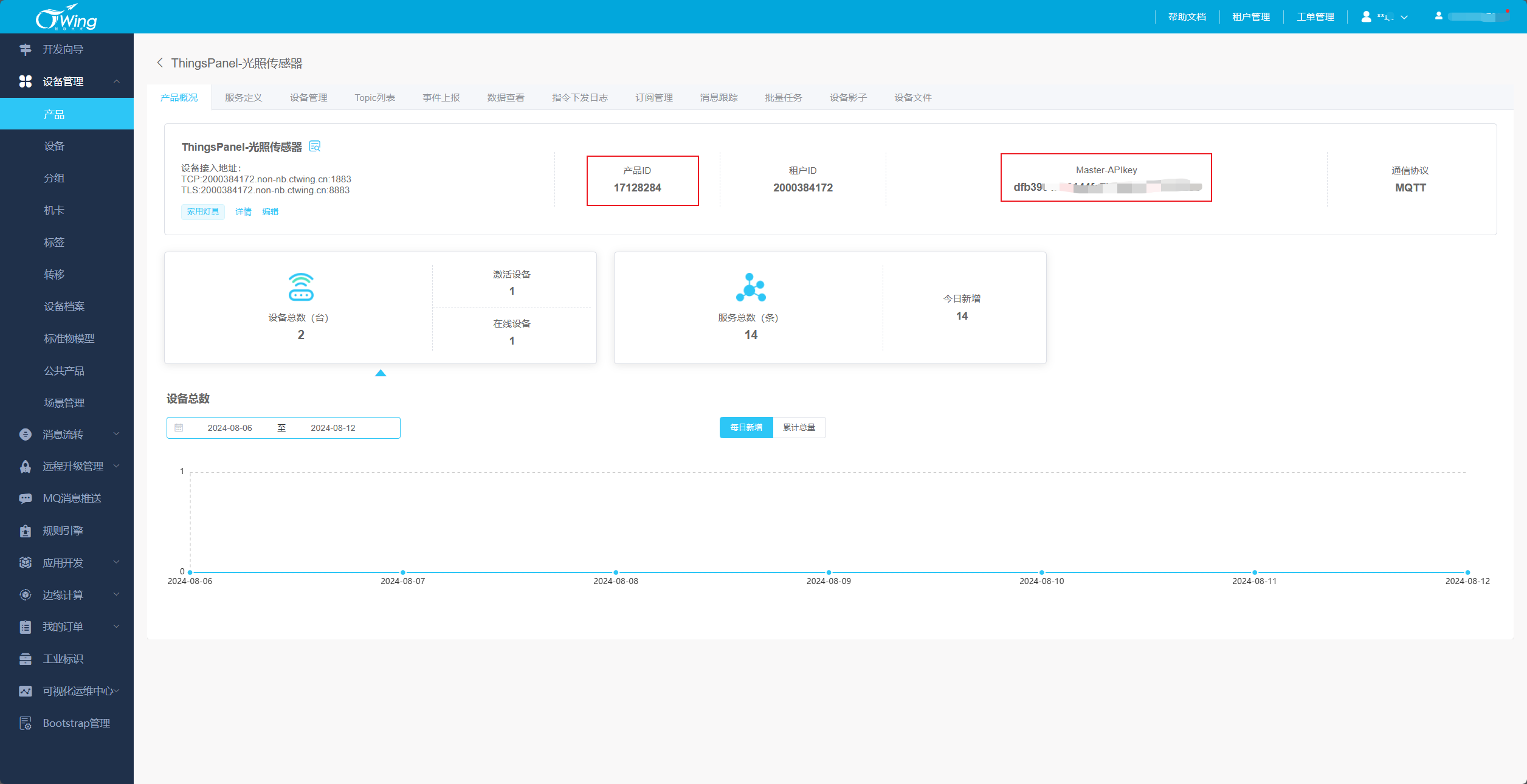

      • Device
      • Product
    • Add Subscription.
      • c.thingspanel.cn:8380 is the service address and port of the device connectivity service.

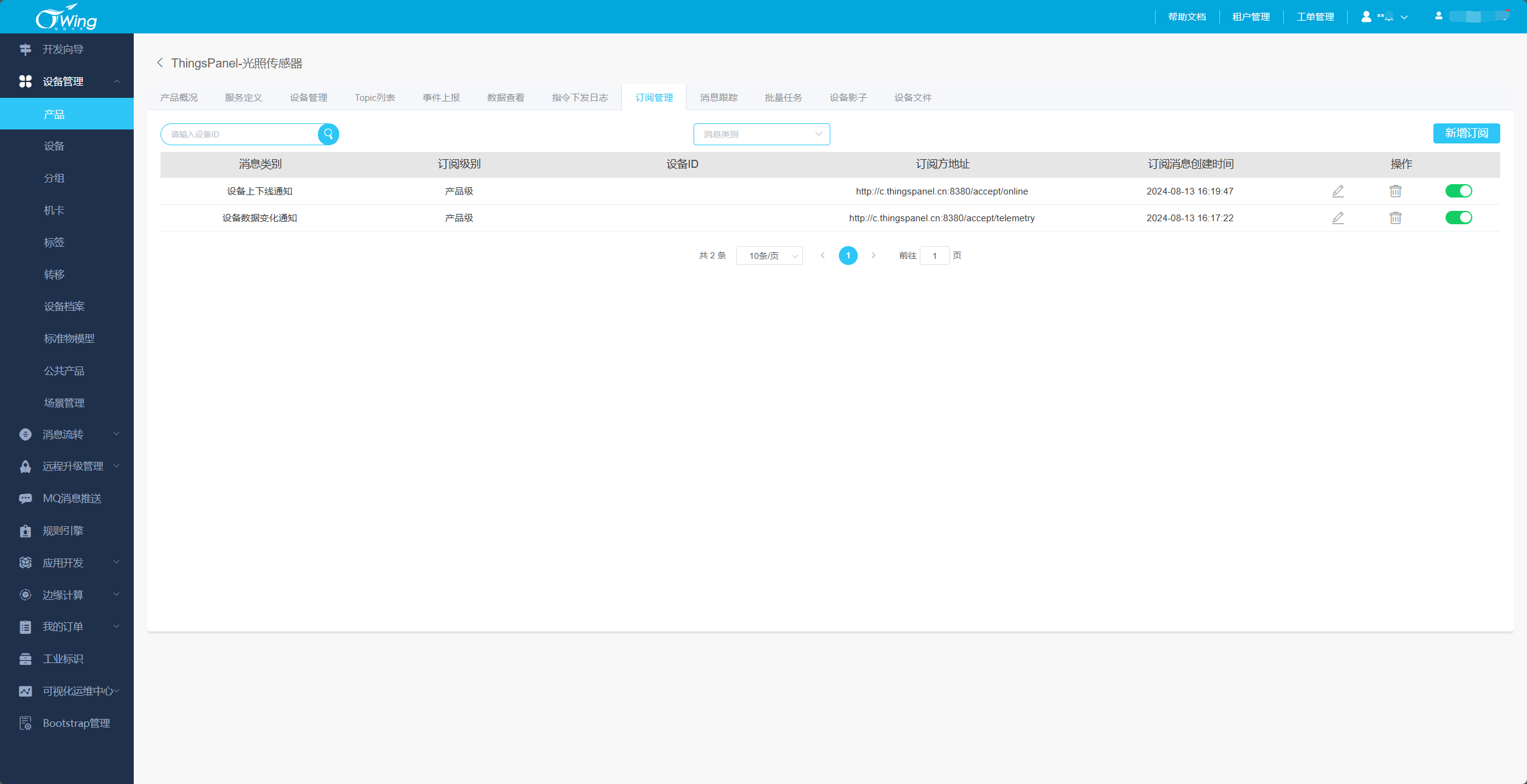

      • Add Subscription
    • Add Application, get App Key and App Secret.

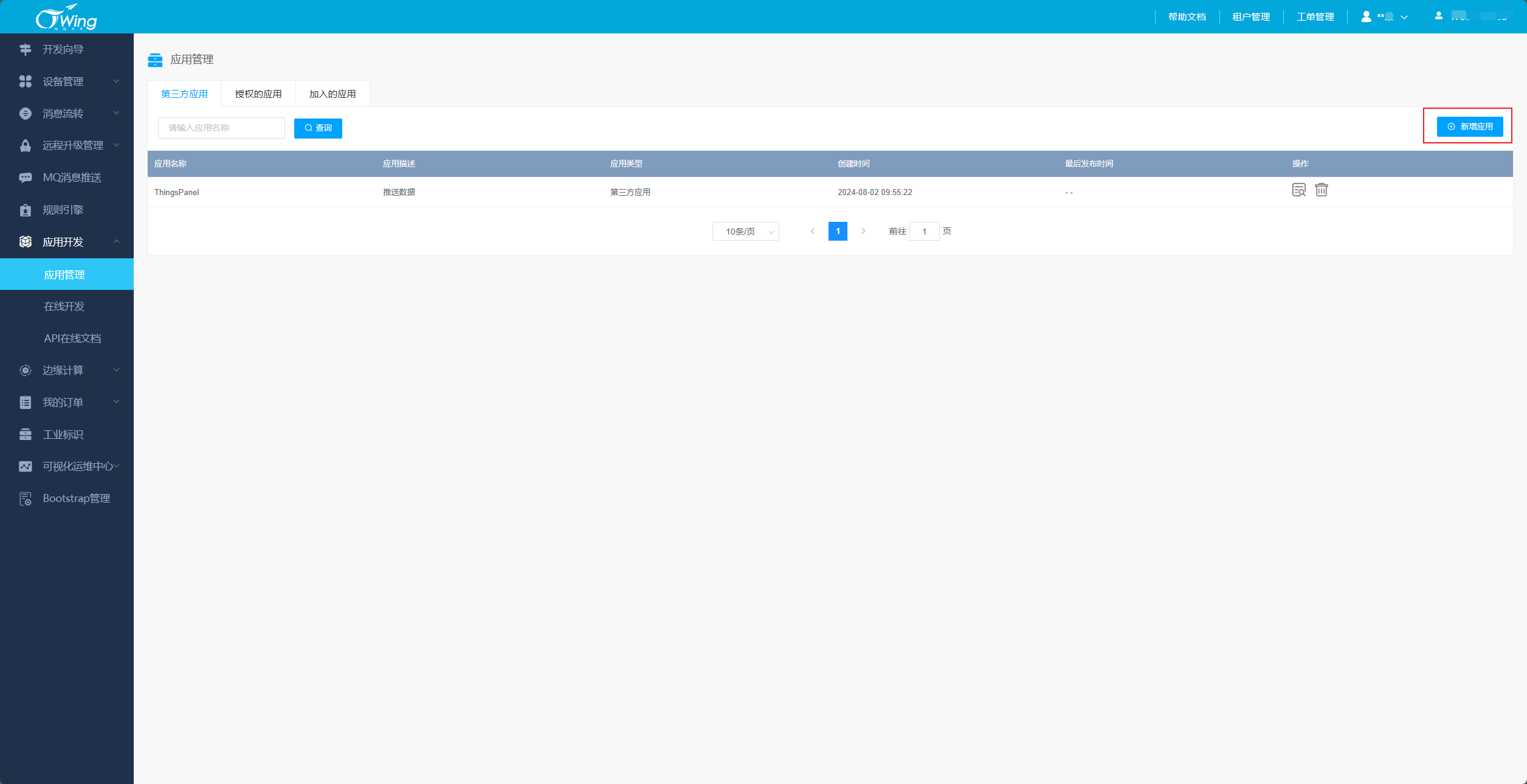

      • Add Application

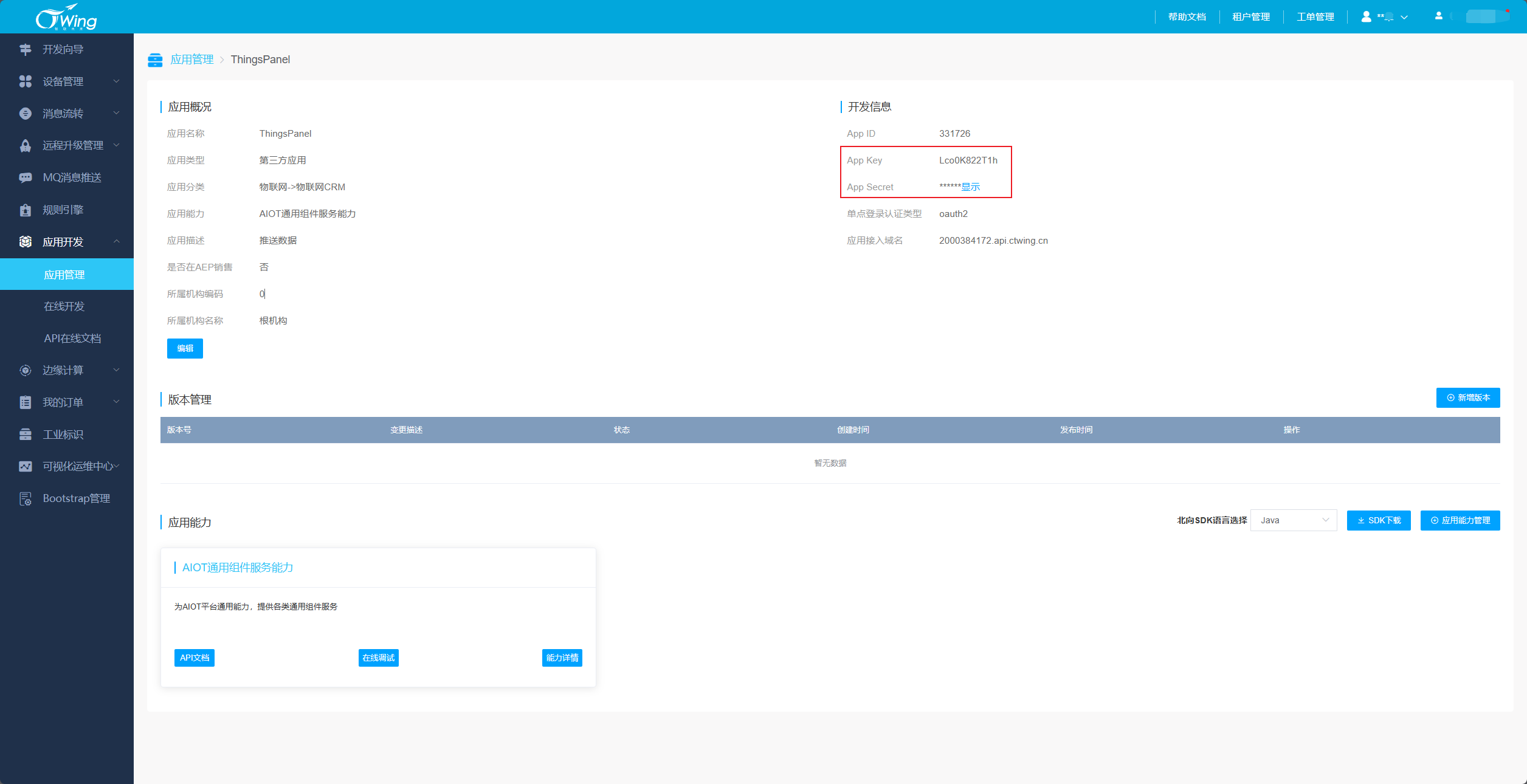

      • Application

  • ThingsPanel Platform Configuration

    • If no device template for this service exists, verify or create one.
      • Device Template
    • Enter Service Access page.

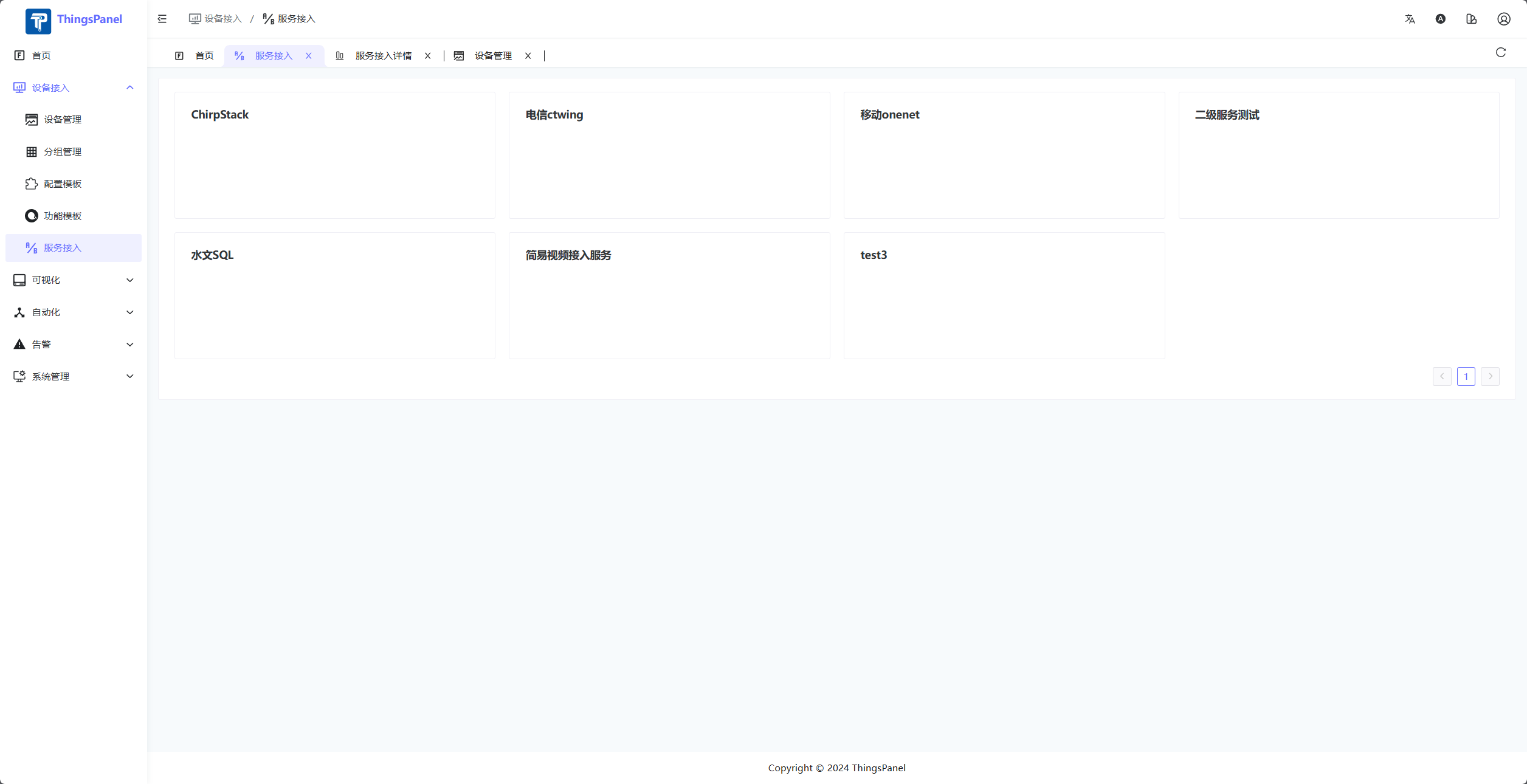

      • Service Access
    • Add Service Access Point.
      • Add Service Access Point
    • Select Devices to Access.
      • Note: This list only displays devices that have pushed data.

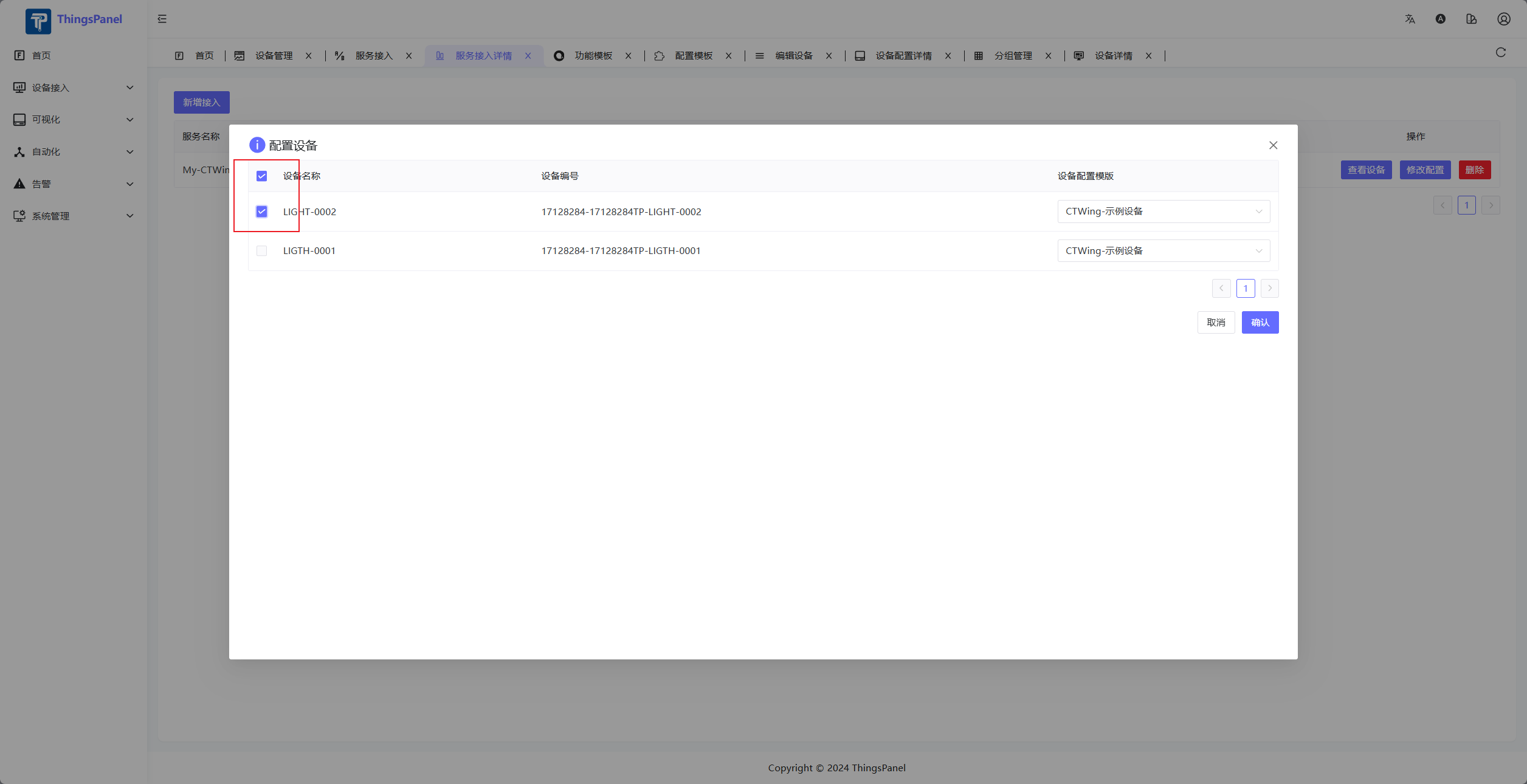

      • Device List
    • After data push, view data in device details.
      • View Data
