China Mobile OneNet Integration

This article introduces how to quickly connect devices from the OneNet platform to the ThingsPanel platform.

Device Connectivity Service Introduction​

OneNet platform provides multiple access methods.

  • service_plugin_onenet Device Connectivity Service:
    • This service accesses data via the HTTP push service of the OneNet platform.

Integration Process​

Prerequisites​

  1. Register a OneNet account.
  2. Register or deploy ThingsPanel platform, and deploy OneNet Device Connectivity Service.
  3. OneNet Device Connectivity Service is registered to the platform. Device Connectivity Service Management

Steps​

  • OneNet Platform Configuration

    • Login to OneNet platform, enter Developer Center. Login

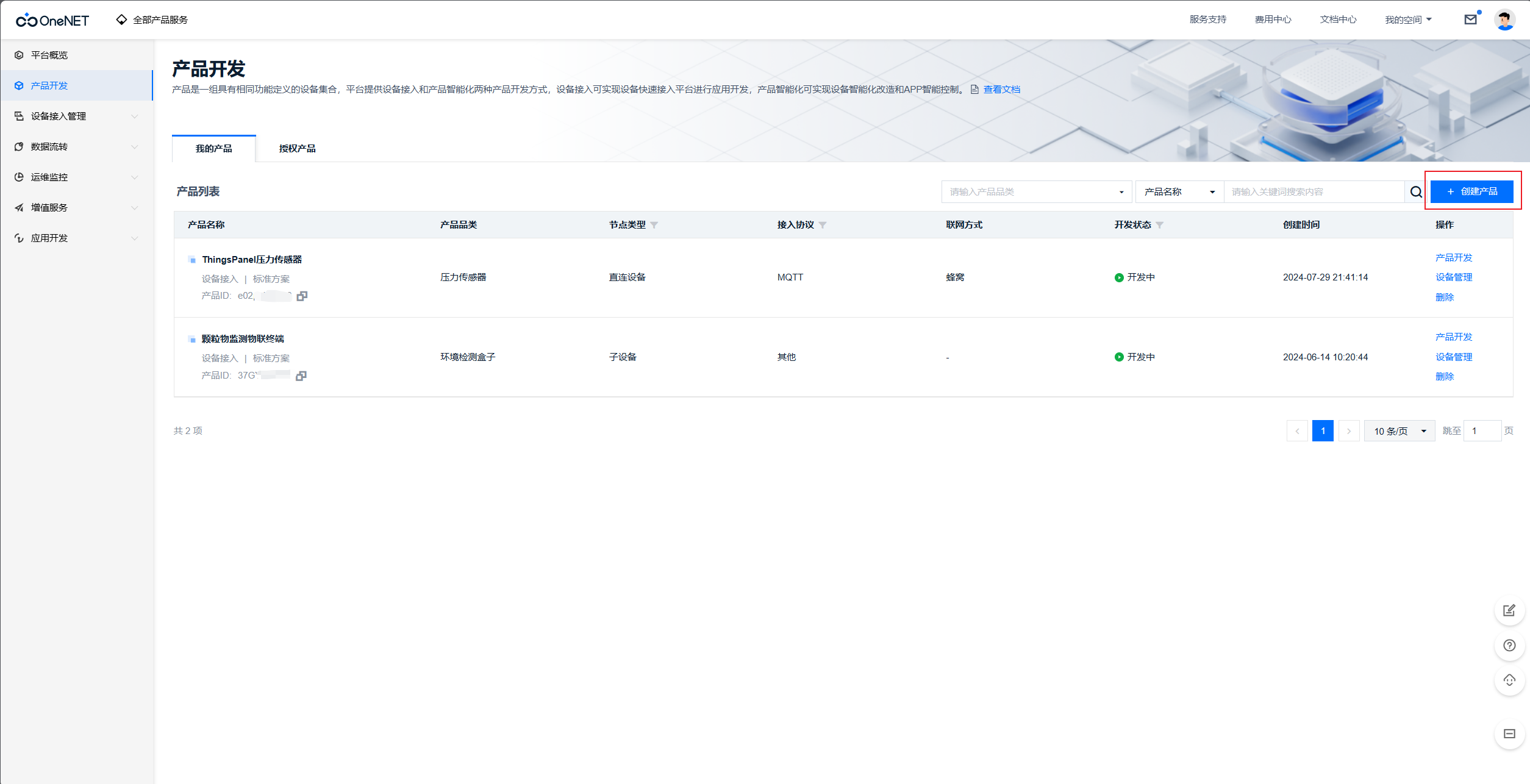

    • Create Product. Create Product

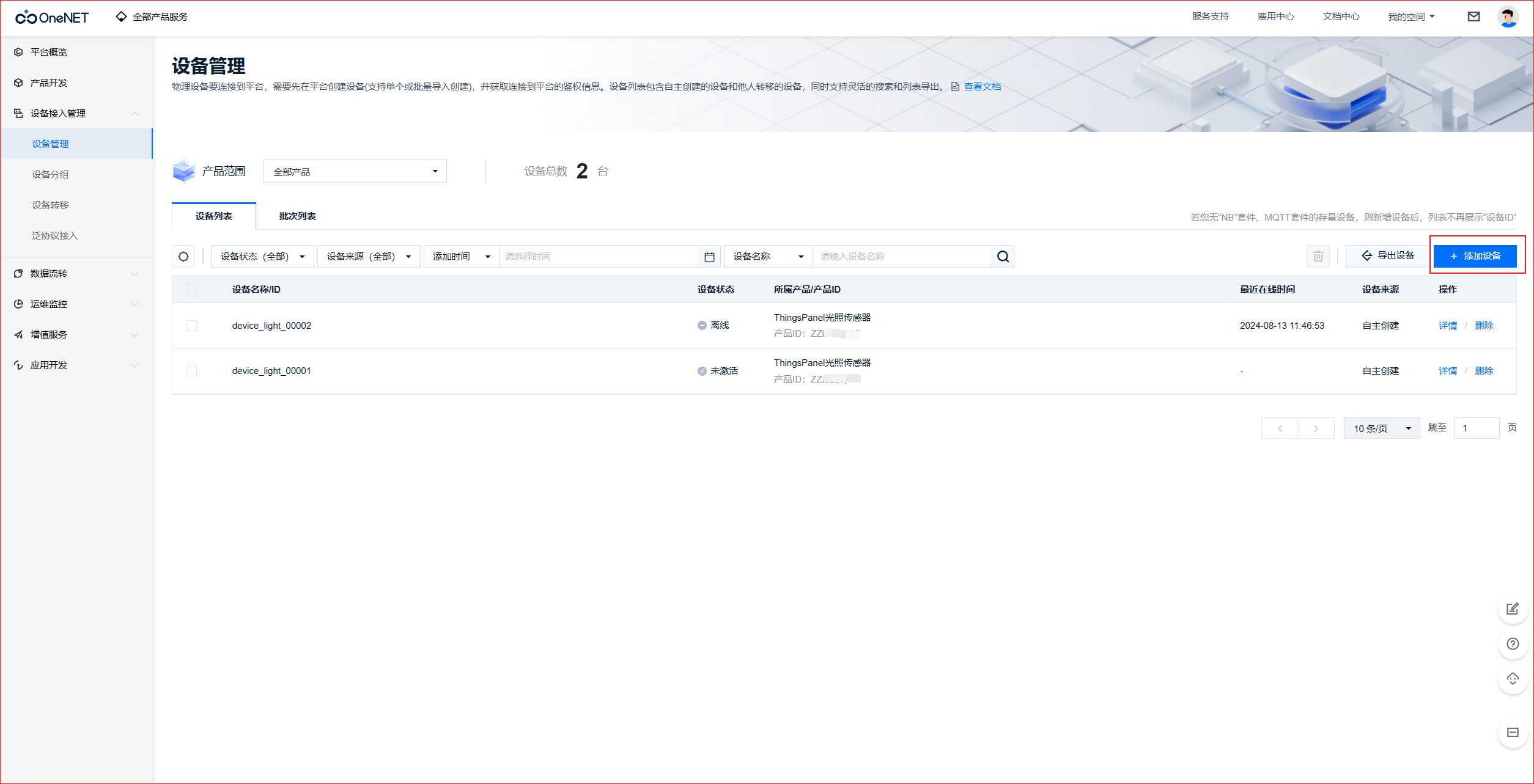

    • Add Device. Add Device
    • Set Data Forwarding (Stream).

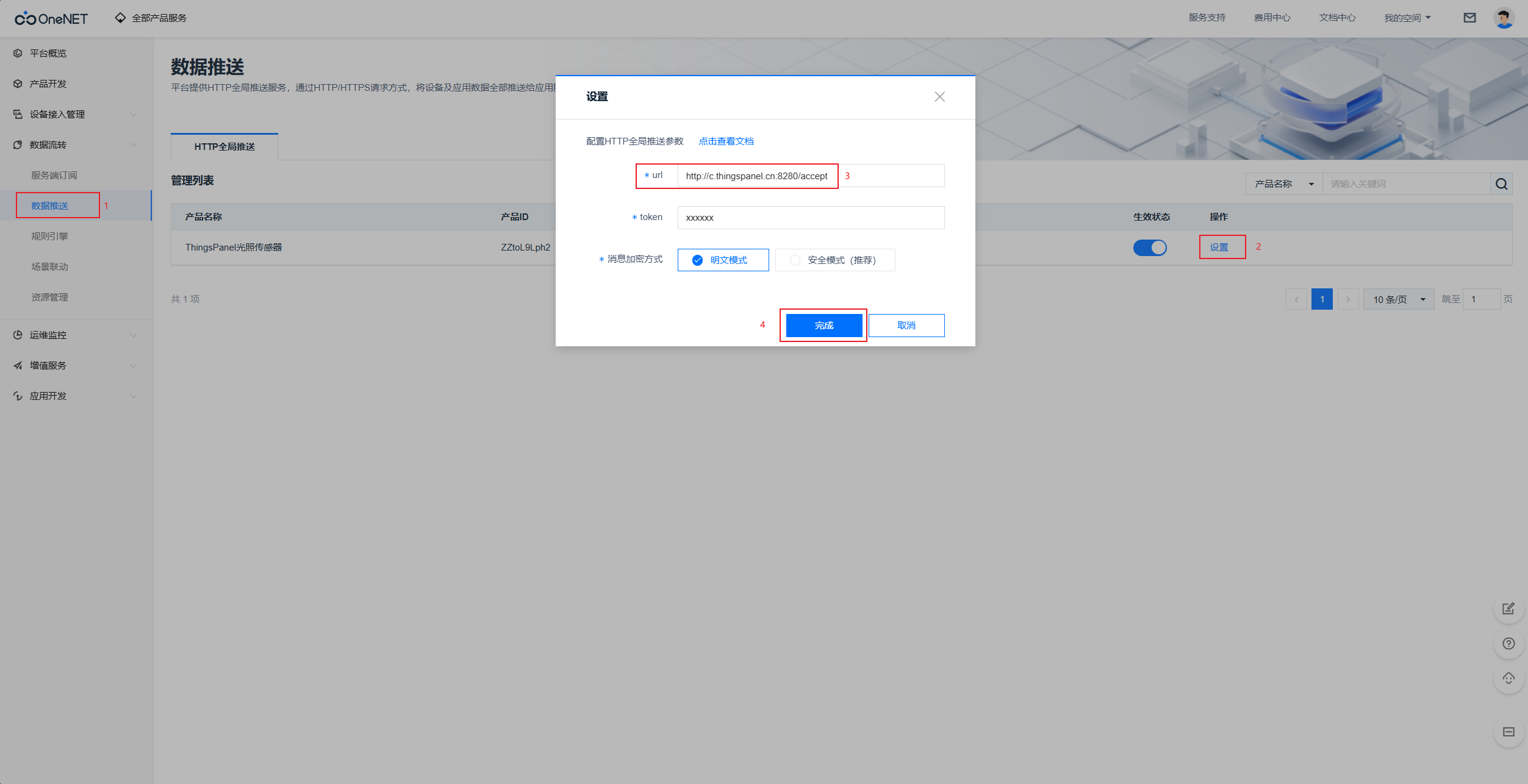

      • Set Forwarding
      • c.thingspanel.cn:8280 is the service address and port of the device connectivity service.

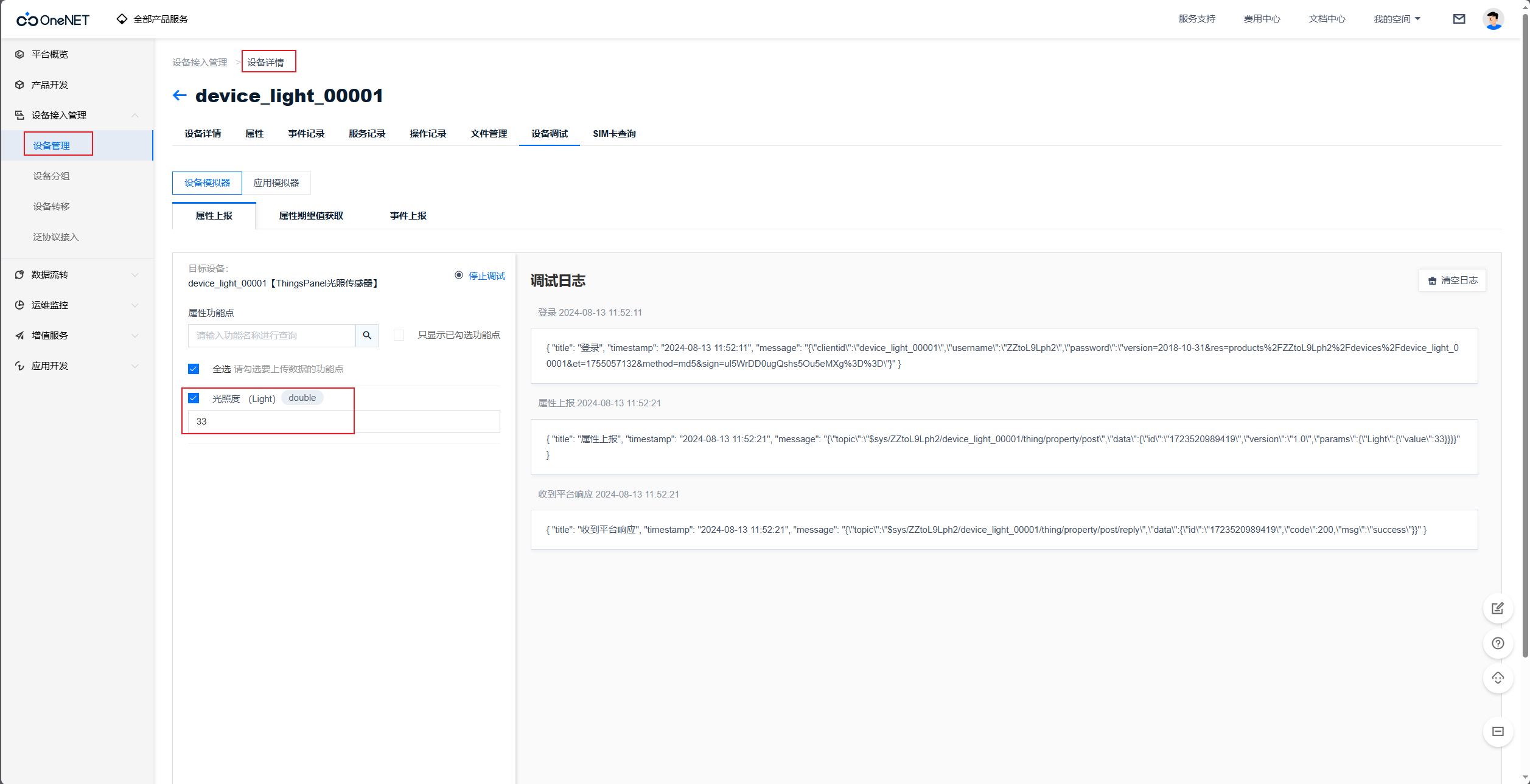

    • Simulate Device Pushing Data. Simulate Data

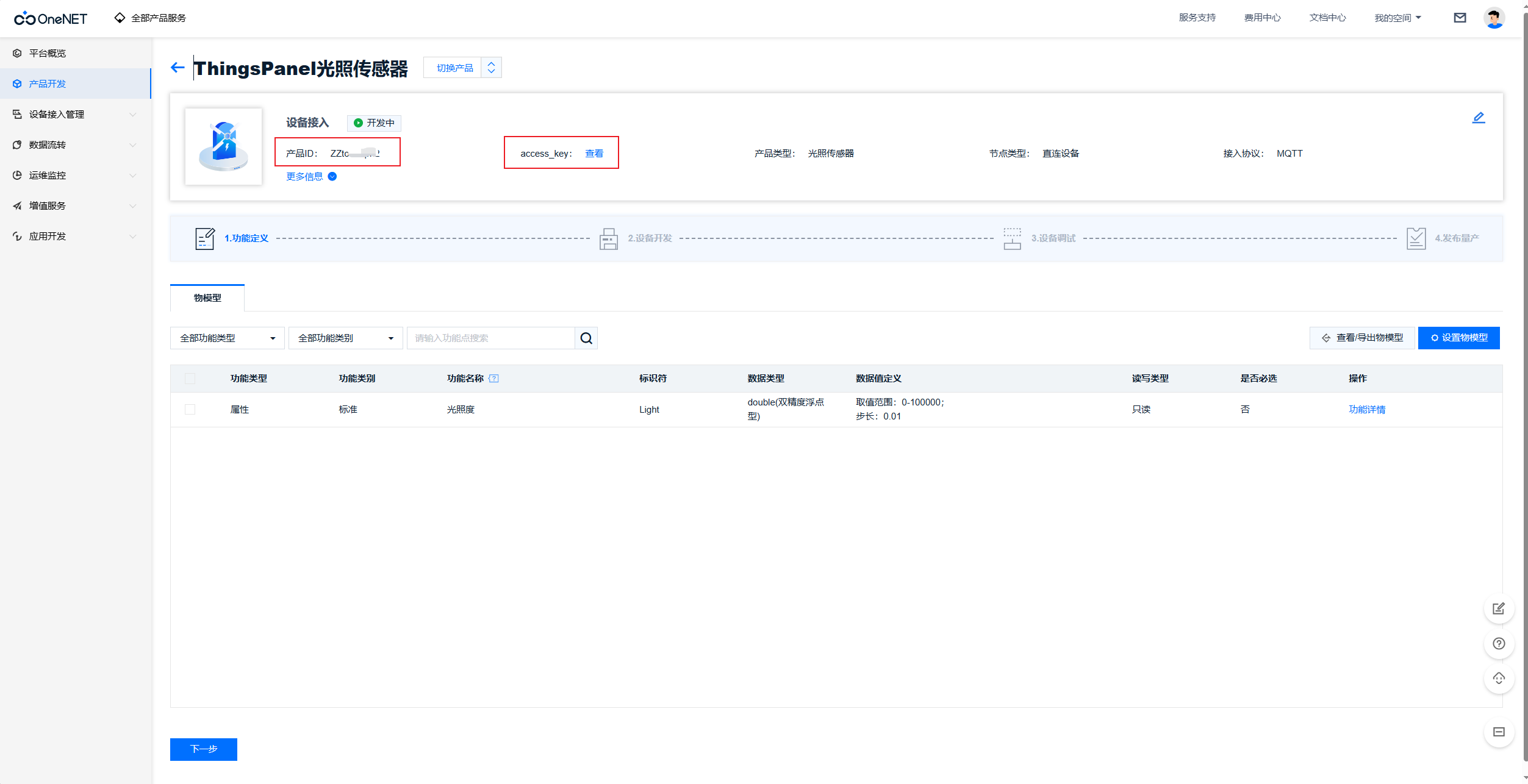

    • Get Product ID and ACCESS_KEY. Get ID and Key

  • ThingsPanel Platform Configuration

    • If no device template for this service exists, create one. Device Template
    • Enter Service Access page. Service Access

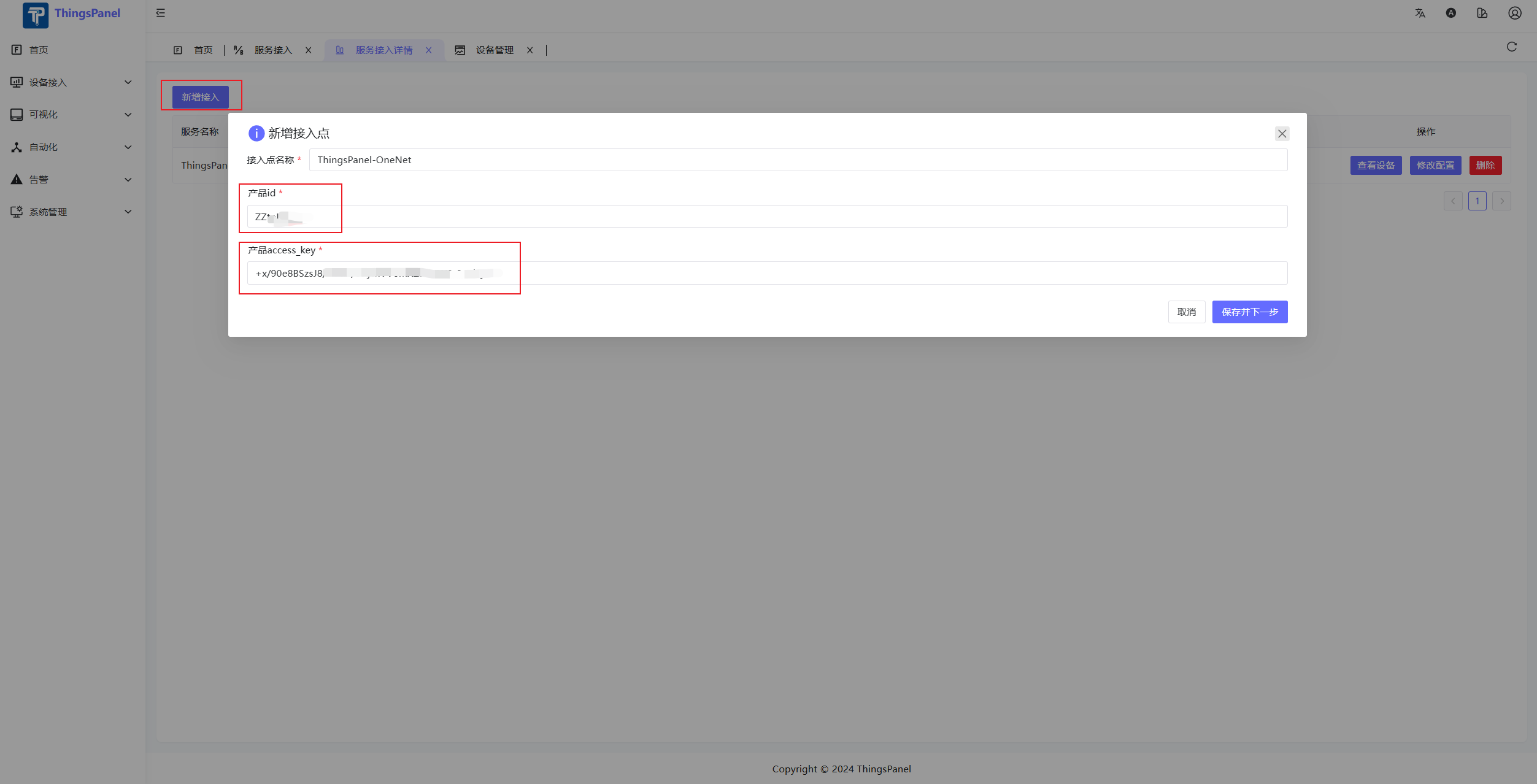

    • Add Service Access Point. Add Service Access Point
    • Select Devices to Access.

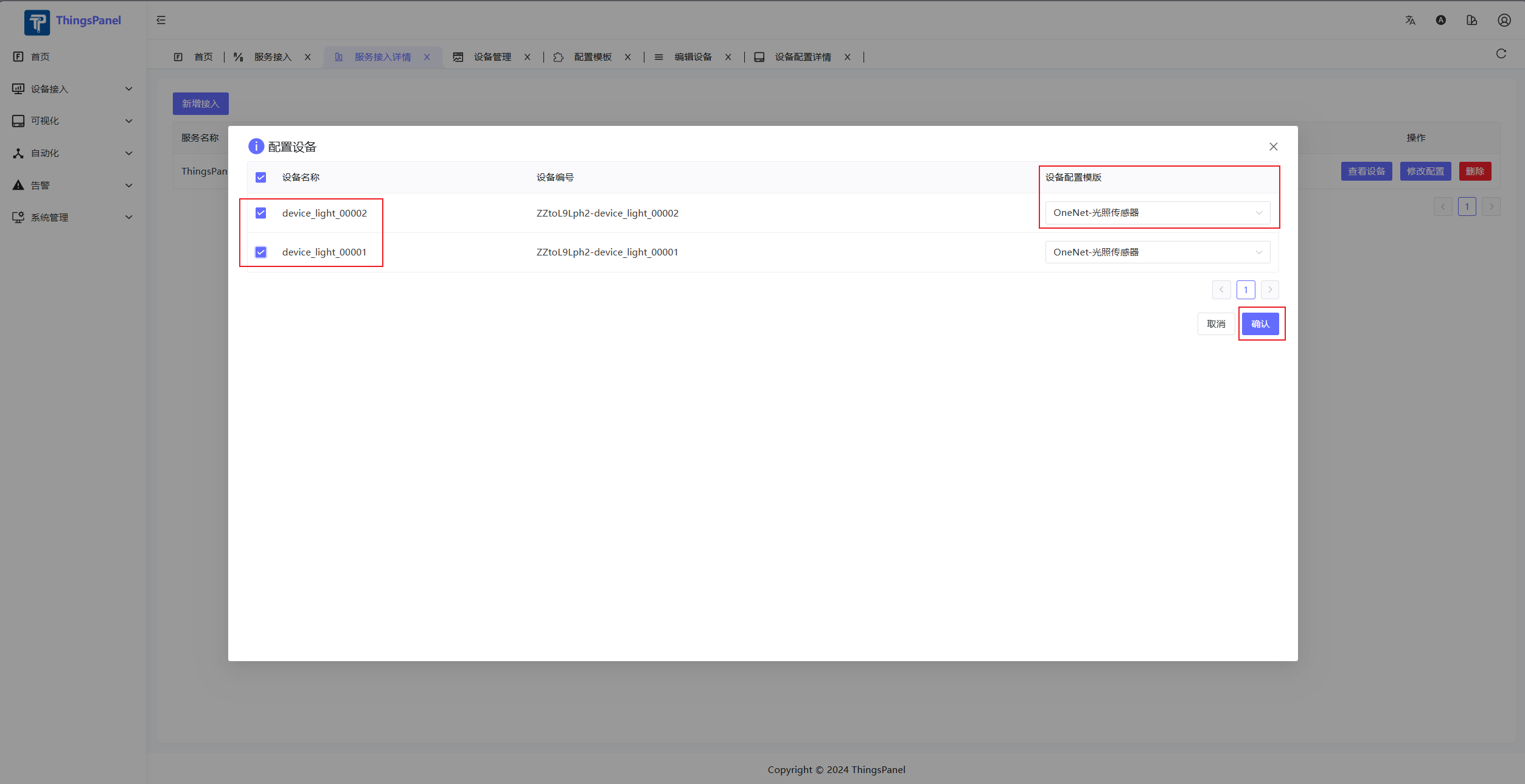

      • Note: This list only displays devices that have pushed data. Select Devices

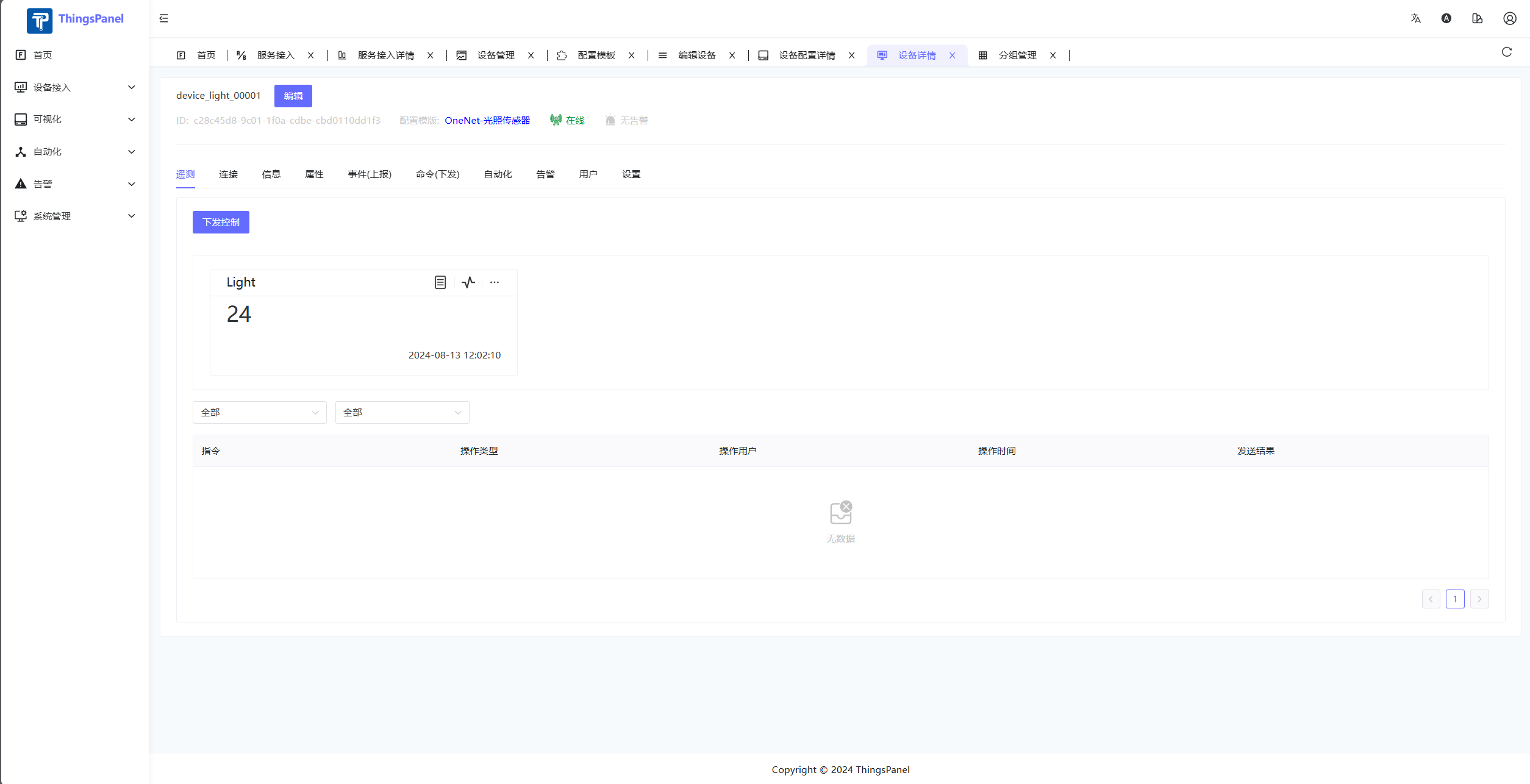

    • After data push, view data in device details. View Data

Others​

ThingsPanel provides a Device Connectivity Service development template. Other integration methods can be developed by yourself referring to the Device Connectivity Service development process.
